8  Network Diagram Functions Overview

The Network Diagram menuin ggsem provides a comprehensive environment for creating, customizing, and visualizing network data with interactive parameter control that bridges network analysis and visual design.

8.1 Data Specification & Input

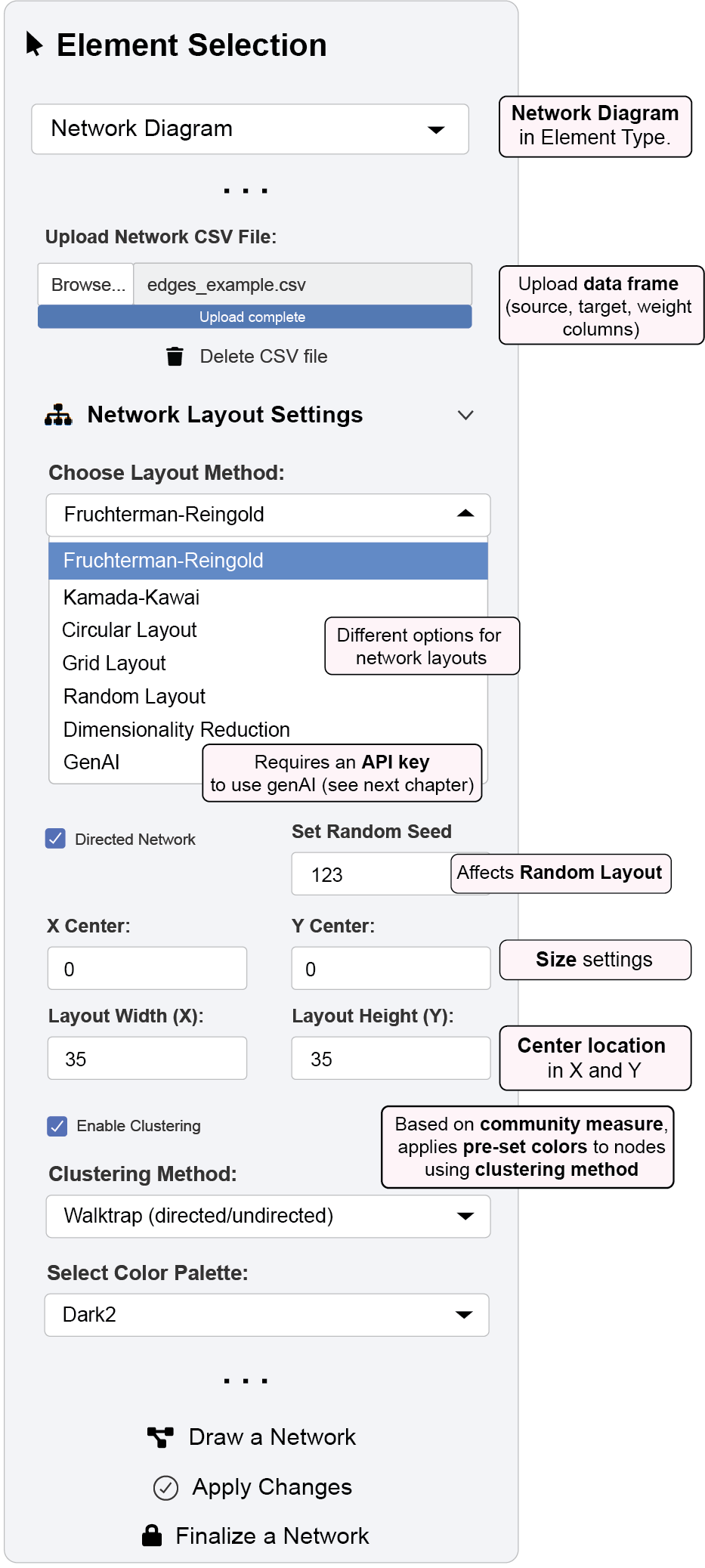

Figure 1. Network Data Input: Users can upload edge list data and configure network layout settings.

ggsem accepts CSV files in edge list format for network visualization, providing flexible options for both weighted and unweighted networks.

Edge List Format:

With edge weights:

source,target,weight
A,B,1.0
A,C,2.0
B,C,3.0
C,D,1.5

Without edge weights:

source,target
A,B
A,C
B,C
C,D

Column specifications:

  • source: Node where edges originate

  • target: Node where edges arrive

  • weight (optional): Strength of connection between nodes

Example Data Preparation:

# Download and examine example network data
(edges_data <- read.csv('https://www.smin95.com/edges_example.csv'))
   source target weight
1       A      E      1
2       B      A      1
3       C      B      2
4       C      G      1
5       D      C      1
6       E      D      2
7       E      F      1
8       F      A      1
9       G      H      2
10      H      D      1

8.2 Layout Algorithms and Network Configuration

ggsem supports multiple layout algorithms for optimal network visualization:

Traditional Layouts (directly affected by Random Seed):

  • Fruchterman-Reingold: Force-directed layout emphasizing edge length uniformity

  • Kamada-Kawai: Force-directed layout based on graph distances

  • Circular: Nodes arranged in circle pattern

  • Grid: Regular grid arrangement

  • Random: Stochastic node placement (see below)

Advanced Layouts:

  • Dimensionality Reduction: Machine learning approaches including t-SNE, UMAP, and PCA

  • GenAI: AI-powered layout optimization (requires API configuration; see next chapter)

Network Configuration Options:

  • Directed/Undirected: Toggle directed edge visualization

  • Random Seed: Ensure reproducible layouts

  • Clustering: Enable community detection with multiple algorithms (Louvain, Leiden, Walktrap, Fast Greedy)

  • Cluster Coloring: 10 color palettes for community visualization

8.3 The Interactive Workflow Cycle

ggsem operates on a three-stage workflow for network visualization, maintaining clear separation between data import, customization, and finalization.

Stage 1: “Draw a Network” - Initial Generation

Click the “Draw a Network” button to generate the initial diagram from your edge list data with several features:

  • Automatic Layout: Applies your chosen layout algorithm to create an optimized network structure

  • Element Integration: Creates nodes, edges, and automatic labels based on your data

  • Editable State: All generated elements are marked with network = TRUE in output tables, ready for modification

Stage 2: “Apply Changes” - Visual Editing Over Network Elements

This stage focuses on applying visual customizations across your network. When you press “Apply Changes”, ggsem performs comprehensive updates while maintaining data integrity.

A. Global Node Settings
Apply consistent styling across all nodes:

  • Shape Customization: Circle, square, rectangle, oval, triangle, and diamond shapes

  • Size & Color Control: Independent adjustments to node sizes, colors, border properties

  • Label Formatting: Text properties for all node labels

B. Global Edge Settings
Standardize the appearance of all connections:

  • Line Properties: Color, width, transparency, and style controls

  • Weight Scaling: Scale edge width by weight values with customizable min/max ranges

  • Curvature Control: Automatic or manual edge curvature for better visibility

  • Arrow/Edge Customization: Direction indicators for directed networks

C. Global Annotation Settings
Maintain consistent text formatting:

  • Node Labels: Font family, size, color, and positioning

  • Edge Labels: Automatic weight display with formatting options

  • Text Properties: Comprehensive text customization controls

Stage 3: “Finalize a Network” - Network Options Lock

  • Edit Protection: Changes network column to FALSE in output tables, making elements immune to further “Apply Changes” operations

  • Visual Preservation: Locks current layout and styling while allowing export

  • Export Preparation: Optimizes the diagram for publication output

8.4 Example 1: Creating and Styling a Basic Network Diagram

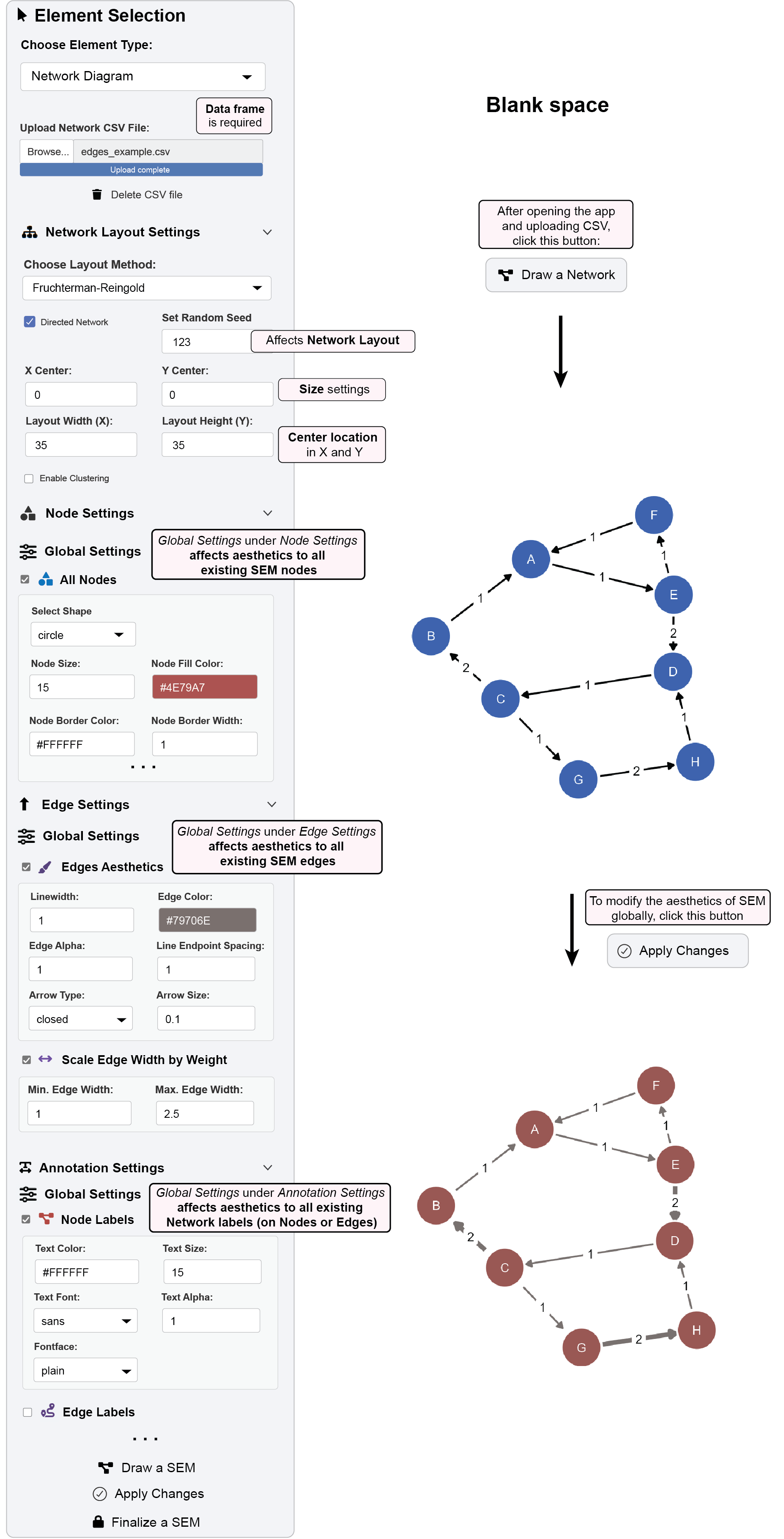

Figure 2. Example 1: Global Settings Modifications in Network Diagram

This example walks through generating a basic network diagram and applying global aesthetic changes.

Step 1: Data Preparation and Upload

  1. Download example edge list data: https://www.smin95.com/edges_example.csv

  2. In ggsem, select “Network Diagram” from Element Type dropdown

  3. Upload your CSV file using the “Upload Network CSV File” button

Step 2: Configure Layout Settings

  1. Navigate to “Network Layout Settings” panel

  2. Set random seed to 123 for reproducible layout

  3. Choose Fruchterman-Reingold layout algorithm

  4. Adjust layout dimensions as needed (Layout Width (X) = 35, Layout Height (Y) = 35)

Step 3: Generate Initial Diagram

  1. Click the “Draw a Network” button

  2. The app will process your data and display the initial network diagram

Step 4: Apply Global Node Styles

  1. Navigate to “Node Settings” panel and open “Nodes Aesthetics” under “Global Settings”

  2. Make the following changes:

  • Node Color: Set to `#AB5250` (red)
  • Node Size: Set to 15

Step 5: Apply Global Edge Styles

  1. Navigate to “Edge Settings” panel

  2. Configure edge properties by opening “Edge Aesthetics” under “Global Settings”

  • Edge Color: Set to #79706E (gray)
  • Edge Width: Set to 1.5
  • Enable “Scale Edge Width by Weight” with min = 1.0, max = 2.5

Step 6: Execute Changes

  1. Click the “Apply Changes” button

  2. The diagram updates with new color scheme and weight-scaled edges

8.5 Interactive Parameter Control: Granular Customization

For precise, element-level control, ggsem offers Interactive Parameter Control that transforms your network into a dynamic visualization environment.

Dynamic Element Selection: Dropdown menus automatically populate with all nodes, edges, and labels from your network data.

Granular Element Manipulation:

8.5.1 Granular Element Manipulation:

Nodes:

  • Nodes Aesthetics: Select specific nodes to modify color, size, shape, and border properties

  • Nodes XY Positions: Fine-tune individual node positions (and associated text labels) with XY coordinate controls

Edges:

  • Edges Aesthetics: Modify specific paths for color, width, style, etc of selected edges

  • Edges Curvature: Change the curvature of selected edges

  • Edges XY Positions: Precise control over edge start and end points of selected edges

Annotations:

  • Node Labels: Modify the text style on selected nodes

  • Node Labels XY Positions: Modify the location of text labels on selected nodes

  • Node Labels Text: Change the text themselves on selected nodes

  • Edge Labels: Modify the text style on edges

  • Edge Labels XY Positions: Modify the location of text labels on selected nodes

  • Edge Labels Text: Change the text themselves on selected edges

8.6 Example 2: Parameter-Specific Modifications in Network Diagram

Figure 3. Example 2: Interactive parameter control for granular network customization

This example demonstrates how to make granular changes to individual elements of an existing network diagram.

Step 1: Load Data and Generate Diagram

  1. Download dataset: https://www.smin95.com/edges_example.csv

  2. Navigate to “Network Layout Settings” panel

  3. Set random seed to `57629`for reproducible layout

  4. Choose Fruchterman-Reingold layout algorithm

  5. Adjust layout dimensions as needed (Layout Width (X) = 35, Layout Height (Y) = 35)

  6. Upload CSV file and click “Draw a Network”

Step 2: Modify Specific Nodes

  1. In “Node Settings”, check “Nodes Aesthetics” under Parameter-Specific Modifications

  2. Select “Node A” from the “Node to Modify” dropdown

  3. Set Node Color to #D97357 (orange) and Node Size to 15 (default)

Step 3: Modify Specific Edges

  1. In “Edge Settings”, check “Edges Aesthetics”

  2. Select “A to B” from the “Edge to Modify” dropdown

  3. Set Edge Color to #9C2C2A (dark red) and Line Width to 2.0

Step 4: Modify Specific Labels

  1. In “Annotation Settings”, check “Node Labels Aesthetics”

  2. Select “Node A” label and set Text Color to #FFFFFF (white) and Text Size to 20

Step 5: Apply All Granular Changes

  1. Click “Apply Changes” to update the selected elements

  2. The diagram highlights specific nodes, edges, and labels with custom styling

Step 6: Finalize Diagram

  1. Click “Finalize a Network” to lock the diagram

  2. Verify protection by attempting additional modifications

8.7 Summary: The Network Visualization Workflow

The ggsem application provides a structured, three-stage workflow for creating, customizing, and finalizing network diagrams.

Core Workflow:

  1. Generation (“Draw a Network”): Create initial diagram from edge list data with automatic layout optimization

  2. Customization (“Apply Changes”): Refine your diagram through global styling and parameter-specific controls for individual elements

  3. Finalization (“Finalize a Network”): Lock the diagram to protect against accidental changes while maintaining export capabilities
